High-Density Calcium Silicate Board for Commercial Building Construction

High-Density Calcium Silicate Board for Commercial Building Construction

Item Value
After-sale Service Online technical support
Project Solution Capability Total solution for projects
Design Style Modern
Feature Fireproof, Moisture-proof, Waterproof
Place of Origin China
Type Calcium silicate board
Model Number Calcium silicate board

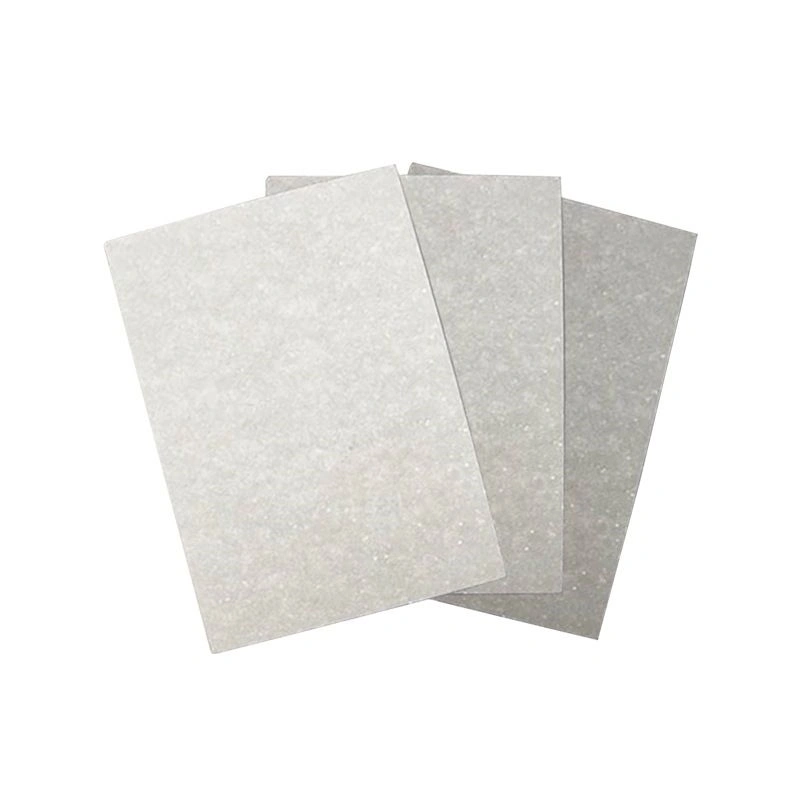

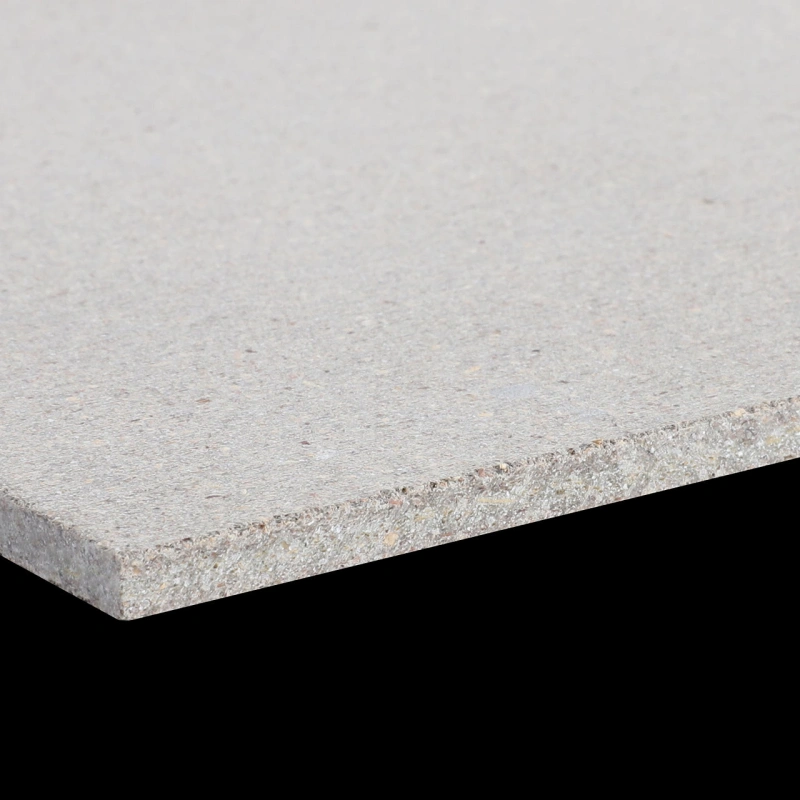

High-temperature-resistant calcium silicate core material for fireproof and soundproof doors is an inorganic sheet material with very stable physical and chemical properties. It features high heat resistance, low thermal conductivity, excellent thermal and sound insulation, low bulk density, high specific strength, long-term deformation resistance, and adaptability to any process and splicing. It is 100% asbestos-free, produces no toxic or harmful gases at high temperatures, and produces no smoke. These excellent properties make it a highly suitable core material for fireproof and soundproof doors, making it a green and environmentally friendly building material.

This core material has been widely used in mid- to high-end fireproof and soundproof doors in various buildings, achieving fire resistance limits of up to 90 minutes, or even over 120 minutes. The product has been exported to countries such as the United States, Canada, and Japan, and has received widespread acclaim from users.

High Temperature Resistant Calcium Silicate Core Material for Fireproof and Soundproof Doors-Fireproof

Physical properties

Item Unit Core Material for Steel Doors Core Material for Wooden Doors
Bulk Density kg/m3 260 – 340 270 - 350
Flexural Strength Mpa ≥0.6 ≥0.7
Thermal Conductivity W/m.k ≤0.068 ≤0.072
Refractoriness 1250 1250
Linear Shrinkage

(1000 ℃× 3h )

% ≤2 ≤2
Sound Insulation Coefficient db ≥30

Dimensions and tolerances

Length × Width(mm) 1080×950 1060×930
Thickness(mm) 30 - 60
Tolerance(mm) Length and width ±3, thickness ±0.5
